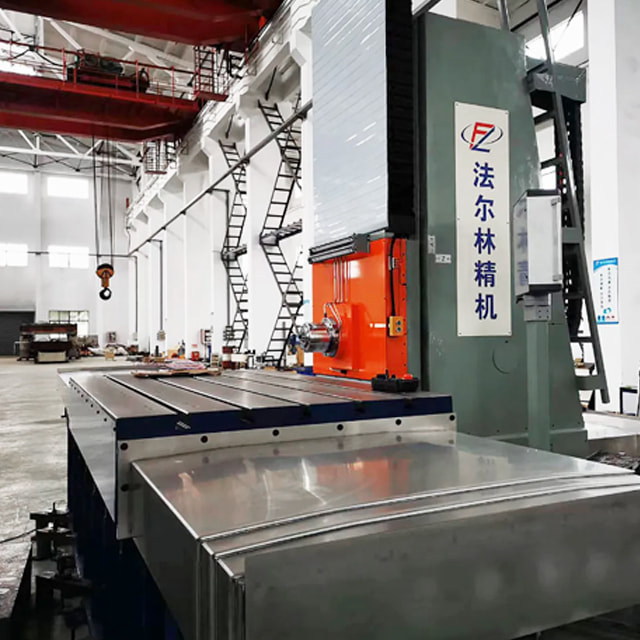

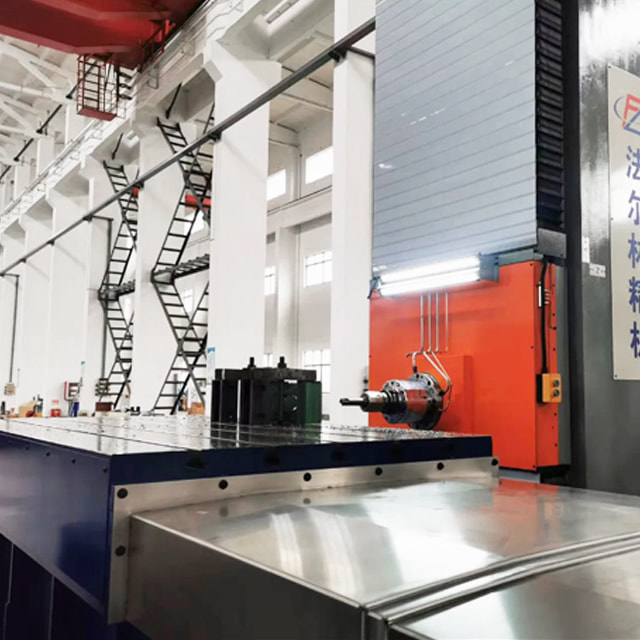

High Precision Tk63 Horizontal CNC Boring and Milling Machine

TK63 series horizontal CNC boring and milling machine is an advanced equipment with excellent performance, wide process range, high precision and high production efficiency, which is designed and manufactured by using today's advanced machinery, electrical, hydraulic and other technologies.
Availability:
Quantity:
Inquire Add to Basket

The machine tool is equipped with Taiwan's new generation full digital control system, which can realize three-axis linkage. One time clamping parts can complete drilling, reaming, boring, plane milling, slot milling, tapping and other processing. The machine tool has the characteristics of high precision, strong reliability, convenient operation, beautiful appearance, etc.

Serial No Project Parameter
1 Table top (long × Width) 2000×1000mm
2 X-axis stroke 2200mm
3 Travel Y-axis 1000mm
4 Z-axis stroke 1000mm
5 Main motor power 18.5/22KW
6 Spindle speed 100~3000rpm(6000rpm)
7 Spindle inner taper hole BT50
8 Distance from spindle center to table top 100-1100mm
9 Distance from spindle end to table center 0~1000mm
10 X.Y. Z-axis feed speed 1~5000mm/min
11 X.Y. Z-axis rapid traverse speed 1~10000mm/min
12 X.Y. Z axis positioning accuracy 0.020mm/1000mm
13 X.Y. Z axis repeated positioning accuracy 0.010mm/300mm
14 Worktable bearing 3500KG
15 Machine weight 19500KG

Note: 1. The machine tool parameters are subject to the latest products of the company.

         2. Machine tool parameters can be customized according to customer requirements.
