At present, the five axis CNC machine tool system is the only way to solve the processing of impeller, blade, marine propeller, heavy generator rotor, turbine rotor, large diesel engine crankshaft, etc.
Main characteristics of machine tool:

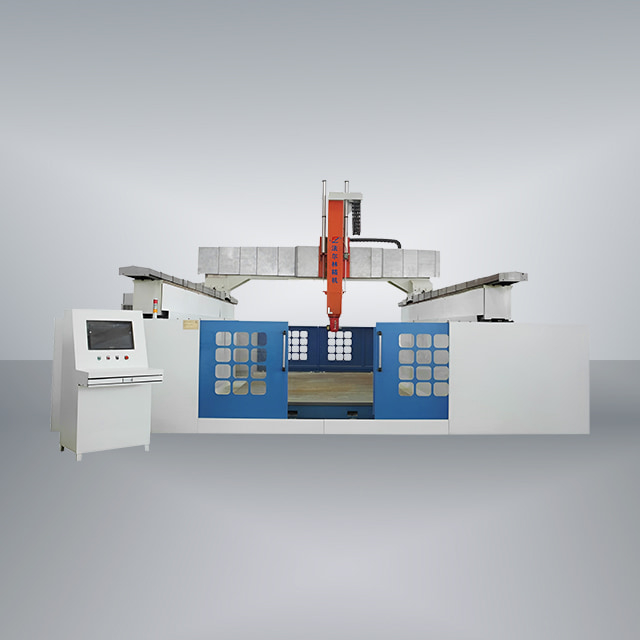

● The machine tool is mainly composed of left and right bases, a set of beams, two sets of left and right columns, two sets of carriage, one set of ram, one set of five axis CNC milling head, one set of pneumatic device, one set of electrical control system and guide rail protection device. Its structure type is fixed workbench and movable gantry frame. The machine tool is reasonably designed for use. It has the advantages of high speed, high speed, five axis interpolation, and good reliability of the drive system. It is suitable for machining super large three-dimensional curved surfaces. The machine tool is simple to use and maintain, and has a beautiful appearance.
● The worktable is made of high-strength cast iron and resin sand, and the casting stress is eliminated by heat treatment.
● The left and right bases and crossbeams are welded and then subjected to secondary artificial aging treatment, and the linear rolling rails are scraped and grinded after fine milling, with high contact accuracy.
● The ram is a double-sided four linear guide rail with good stability and high precision, and it is not easy to generate resonance when cutting parts.
● Spindle head - HSD motorized spindle imported from Italy,
A-axis: ± 112 °, C-axis: ± 213 °, with RTCP function (5-axis interpolation).
● The drive motors of X1, X2, Y, Z axes and the four coordinate axes are all imported AC servo motors. The machine tool has stable control performance and high positioning accuracy.
At present, the five axis CNC machine tool system is the only way to solve the processing of impeller, blade, marine propeller, heavy generator rotor, turbine rotor, large diesel engine crankshaft, etc.
Main characteristics of machine tool:
● The machine tool is mainly composed of left and right bases, a set of beams, two sets of left and right columns, two sets of carriage, one set of ram, one set of five axis CNC milling head, one set of pneumatic device, one set of electrical control system and guide rail protection device. Its structure type is fixed workbench and movable gantry frame. The machine tool is reasonably designed for use. It has the advantages of high speed, high speed, five axis interpolation, and good reliability of the drive system. It is suitable for machining super large three-dimensional curved surfaces. The machine tool is simple to use and maintain, and has a beautiful appearance.
● The worktable is made of high-strength cast iron and resin sand, and the casting stress is eliminated by heat treatment.
● The left and right bases and crossbeams are welded and then subjected to secondary artificial aging treatment, and the linear rolling rails are scraped and grinded after fine milling, with high contact accuracy.
● The ram is a double-sided four linear guide rail with good stability and high precision, and it is not easy to generate resonance when cutting parts.
● Spindle head - HSD motorized spindle imported from Italy,
A-axis: ± 112 °, C-axis: ± 213 °, with RTCP function (5-axis interpolation).
● The drive motors of X1, X2, Y, Z axes and the four coordinate axes are all imported AC servo motors. The machine tool has stable control performance and high positioning accuracy.
Project | unit |
Maximum processing size of workpiece | 3000mm*5000mm*1000mm |
X-axis stroke | 5800mm |
Travel Y-axis | 3800mm |
Z-axis stroke | 1400mm (Distance from worktable to spindle end: 300mm-1700mm) |
A-axis stroke | ±112° |
C-axis stroke | ±213° |
Maximum idling speed of main shaft | 22000rpm/min |
Rapid feed rate | X-axis: 20000mm/min; Y-axis: 20000mm/min; Z-axis: 10000mm/min |
Spindle inner taper hole | HSKF63, the maximum diameter of the clamping tool of spring clamp ER40 is Φ twenty-five |
file format | G code |
working voltage | AC380V/50HZ |
Control system | OSAI system (equipped with a desktop Dell computer with LCD and Chinese operating system) |
Spindle motor | 10KW water-cooled HSD motorized spindle imported from Italy |
linear guide rail | Schneiberg or THK or HIWIN |
driving system | yaskawa |
gear rack | WMH rack imported from Germany |
Z-axis screw rod | Germany Yifu or THK or Nanyigong |
• The above parameters can be designed and manufactured according to the needs of users.
