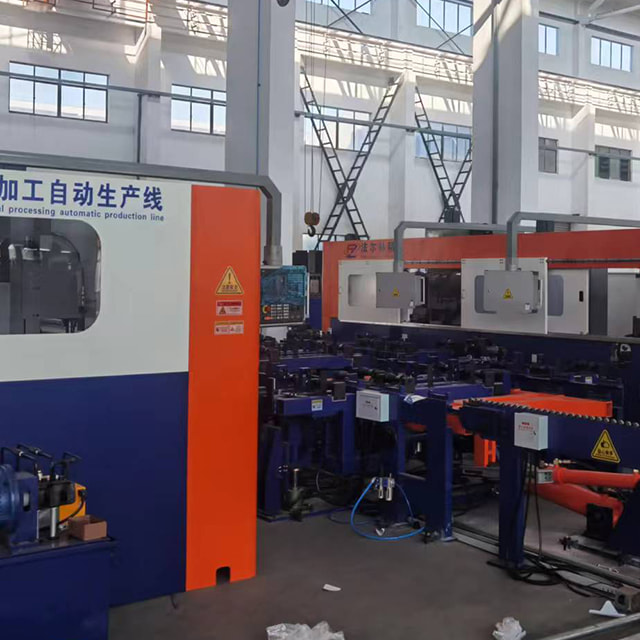

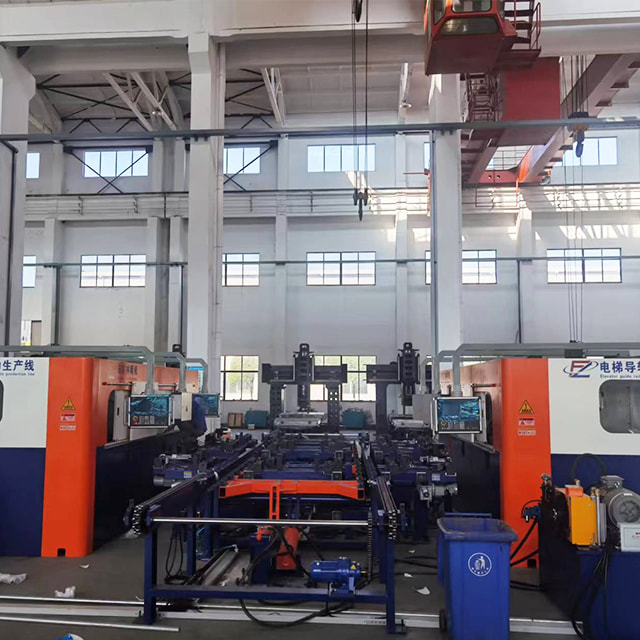

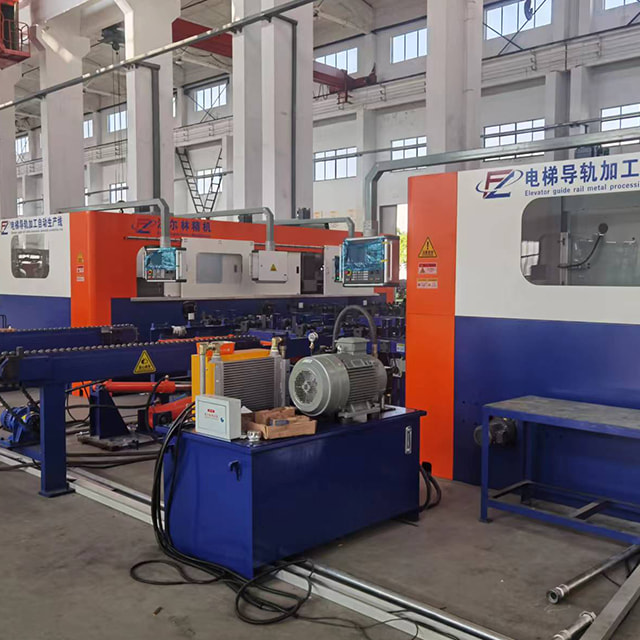

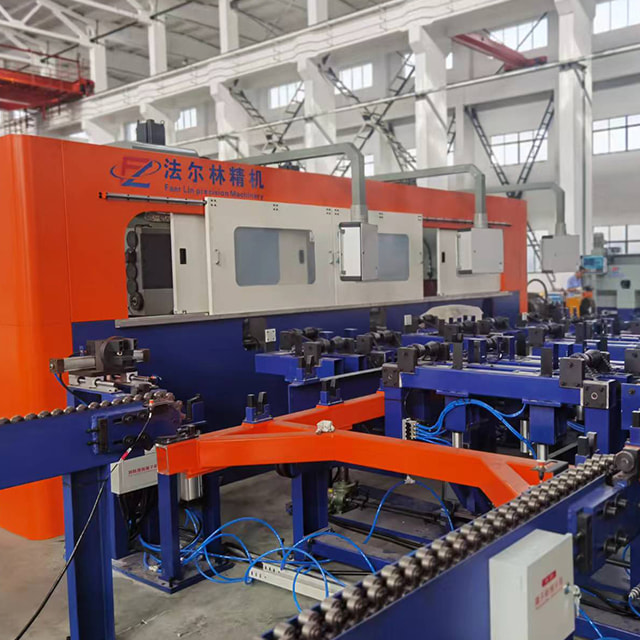

The elevator guide rail vertical and horizontal composite type milling leftface, left back a large machine, elevator guide rail Yang tenon horizontal NC machining, the elevator guide rail is dynamic column vertical CNC drilling, the left moving column vertical CNC boring machining complex machine a, elevator guide rail vertical and horizontal composite type milling the right end, right back machine Taiwan, elevator guide rail, a mortise horizontal NC machining, the elevator guide rail, right enddynamic column vertical CNC drilling, the right end dynamic column vertical CNC boring machining complex machine a, the whole line logistics delivery device set. A total of four sets of machine tools, a set of logistics delivery device.
Elevator guide rail, processing production line processing
● Milling of elevator guide rail and the back end
● The elevator guide rail, mortise and tenon milling
● Elevator guide rail mounting hole drilling
● Elevator guide rail mounting hole boring processing
● Applicable scope : T75-3/B - T127-2/B specifications Guide
● Processing time: 65s/per (With T75-3 as an example)
● Length: 4000 mm, 5000 mm.
● Production program: 240000 per year(lwo shifts)
● Power for the whole line : 200Kw
● Power supply: three-phase five wire AC 380V +10%, 50Hz + 1%
● The pressure required for the whole line equipment: 0.6-0.9Mpa
● The area required for the whole line equipment 12000X14000(mm)
