The machine can realize the milling,drilling, boring, reaming and tapping processes. The machine increases a plurality of milling head device can automatically finish milling through all the needle groove manual tool changing.
Structural characteristics

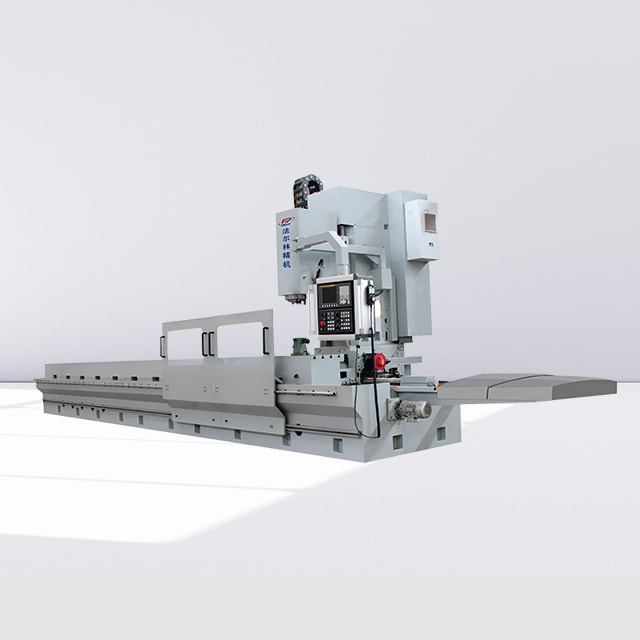

● Machine tool for single axis vertical column mobile NC milling machine. Having the X axis, Y axis, Z axis three linear axes and a servo spindle.
● X axis (bed) for the overall structure of casting, the use of high strength cast iron material and resin sand casting process, have sufficient strength and rigidity.
● X axis guide rail adopts imported Japanese THK linear rolling guide, the utility model has the advantages of high precision, good performance incut ting servo driven, strong vibration resistance. X axis feed adopts AC servo motor through a speed reducing mechanism to drive the ball screw rotation. (the lead screw, nut rotation).
● Y axis, Z axis guide rail adopts slide quenched and plastic, good rigidity, stable and reliable.
● X axis, Y axis, Z axis adopts Germany 1+F high precision ball screw
● Spindle components: spindle is made of alloy steel. Group main shaft bearing and screw support bearings are imported bearing (NSK).
● The tool clamping and loosening: spindle with automatic broach mechanism.
● The control system of the machine tool used in Japan FANUC company products, with independent electrical box and the installation of air-conditioning equipment.
● Machine adopts wet processing, with independent water tank. Chip machine for automatic spiral chip chip.
